ISbus fieldbus technology Field device coupler, 12 spurs for Zone 2 Ex ec - 207906

Field device coupler series 9410
Art. No.: 207906

Product Type: 9410/34-330-60
Product description: ISbus fieldbus technology Field device coupler, 12 spurs for Zone 2 Ex ec
Zone Filter: Zone 2 | 3 G | Gc
Application range (zones): 2
Ex interface zone: 1, 2
Certificates: ATEX (BVS), Canada (FM), IECEx (BVS), International (FF), USA (FM)
Spurs connection type: Detachable screw terminal with fuse
Field enclosure: without

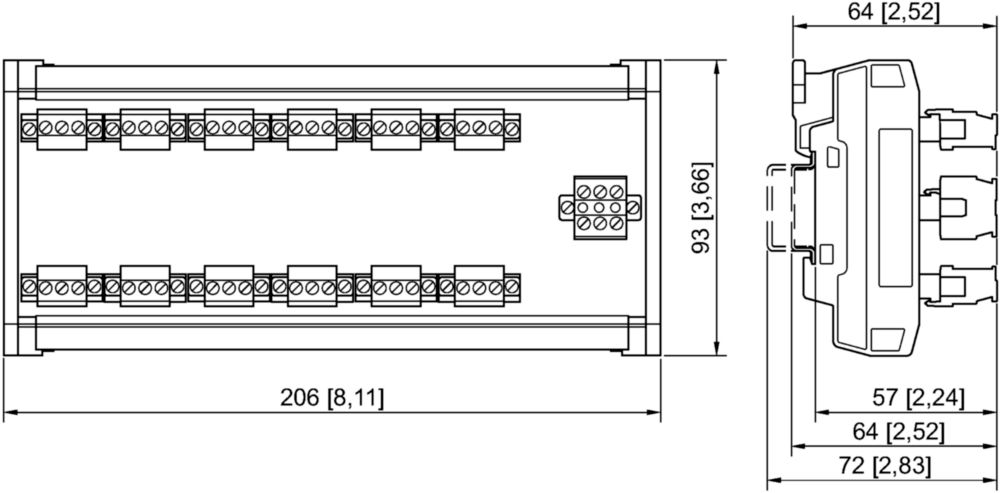

Width: 206 mm
Country of origin: DE
More information

Technical data

General

MY R. STAHL 9410A
Product variant Field device coupler for Zone 2 Ex ec
Product Type 9410/34-330-60
Product description ISbus fieldbus technology Field device coupler, 12 spurs for Zone 2 Ex ec
Highlights For connection of 4, 8 or 12 fieldbus devices in Zone 2
Ex ec or ic spurs
Operation on the high-power trunk
Reduced start-up current thanks to power management and short-circuit limiting with disconnection
Functional Description The Ex ec field device coupler series 9410 for Zone 2 are used for reaction-free connection of up to 12 FOUNDATION Fieldbus H1 or PROFIBUS PA field devices to the high-power trunk. The spurs with ec or ic type of protection can be used for fieldbus devices in Zones 2 (ic, ec) and 1 (d, q, m) and are short-circuit limited.The integrated power management minimises start-up and short-circuit currents.

Explosion Protection

Safety Data

Electrical Data

Auxiliary power

Galvanic isolation

Input

Output

Field Device Interface

Device Specific Data

Ambient Conditions

Mechanical Data

Mounting / Installation

Components

Commercial data
