bus-Carrier for 9419 series linking device
Art. No.:
250240
Product Type:
9419/04F-LD1-01E1
Product description:
ISbus fieldbus technology bus-Carrier linking device for Zone 2
Zone Filter:
Zone 2 | 3 G | Gc
Application range (zones):
2
Certificates:
ATEX (BVS), IECEx (BVS)
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9419C |
| Product variant | bus-Carrier for linking device |
| Product Type | 9419/04F-LD1-01E1 |
| Product description | ISbus fieldbus technology bus-Carrier linking device for Zone 2 |
| Highlights | Time- and cost-saving installation on DIN rails or mounting platesHigh availability thanks to redundant auxiliary power supply with signalling contact and separate signalling contact for segment errorsSpecial slot for FG-200 linking device or Softing pnGate PA and for DCM series 9415 for online transmission of physical layer diagnostics |
| Functional Description | 9419 series bus-Carriers allow 9412 series fieldbus power supplies for FF H1 segments to be installed quickly and securely. Variants are available for four or eight segments with simplex supply and for four segments with redundant supply. Softing „FG-200 HSE/FF Modbus” linking devices and pnGate PA can be integrated into this version, and can link up to eight H1 segments to the Modbus TCP protocol or PROFINET. |
| Description | bus-Carrier for linking device for four segments, simplex |
Explosion Protection
Electrical Data
Auxiliary power
Device Specific Data
Ambient Conditions

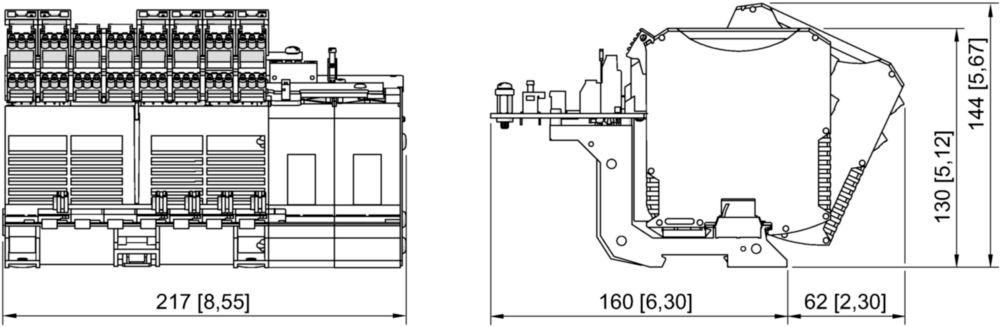

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| bus-Carrier for Linking Device Series 9419 | Data Sheet |
 |
|
| bus-Carrier for Linking Device Series 9419 | Data Sheet |
 |
|
| ISbus fieldbus technology bus-Carrier linking device for Zone 2 - 9419/04F-LD1-01E1 - 250240 - de-DE | Single Data Sheet |
|
|
| ISbus fieldbus technology bus-Carrier linking device for Zone 2 - 9419/04F-LD1-01E1 - 250240 - en-GB | Single Data Sheet |
|
|
| bus-Carrier for linking device - 9419 - es-ES | Product Overview |
 |
|
| bus-Carrier for linking device - 9419 - fr-FR | Product Overview |
 |
|
| bus-Carrier for linking device - 9419 - de-DE | Product Overview |
|
|
| bus-Carrier for linking device - 9419 - en-GB | Product Overview |
|
|
| ISbus fieldbus technology bus-Carrier linking device for Zone 2 - 9419/04F-LD1-01E1 - 250240 - fr-FR | Single Data Sheet |
|
|
| ISbus fieldbus technology bus-Carrier linking device for Zone 2 - 9419/04F-LD1-01E1 - 250240 - es-ES | Single Data Sheet |
|
