Digital output module, 4-channel version for Zone 1 Series 9475/32-04-72
Art. No.:
218063
Product Type:
9475/32-04-72
Product description:
IS1+ Remote I/O Digital output module For Zone 1 Ex i
Max. power consumption:
6.00 W
Class 1 Division / Zone:
Division 2 / Zone 1
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Ex interface zone:
1, 2, 21, 22
Certificates:
ATEX (DEK), Brazil (ULB), Canada (FM), China (NEPSI), IECEx (DEK), India (PESO), Korea (KTL), SIL (exida), USA (FM)
Installation:
Zone 1, Zone 2 and safe areas
Number of channels:
(depends on nominal output current), 4 (3) Ex i inputs
Ex i output rated operation:
11.7 V/95 mA, 12.3 V/75 mA
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9475F |
| Product variant | Digital output module with "Plant STOP" |
| Product Type | 9475/32-04-72 |
| Product description | IS1+ Remote I/O Digital output module For Zone 1 Ex i |
| Highlights | 4 channels for Ex i hydraulic and solenoid valves up to 95 mAEx ib outputs with line fault monitoring, an LED fault and status display for each channel and SIL2 shutdown inputModules in Zone 1 can be replaced without having to disconnect the power supply (i.e. hot-swapped) |
| Functional Description | The 9475/32-04-72 digital output modules for Zone 1 have four channels for actuating Ex i hydraulic and solenoid valves or indicator lamps. An additional Ex i control input is suitable for safe shutdown up to SIL 2. All outputs are short-circuit proof, galvanically separated from the system and individually monitored to check for wire breakage/short-circuiting. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Input
Output
Device Specific Data
Diagnostics
Ambient Conditions

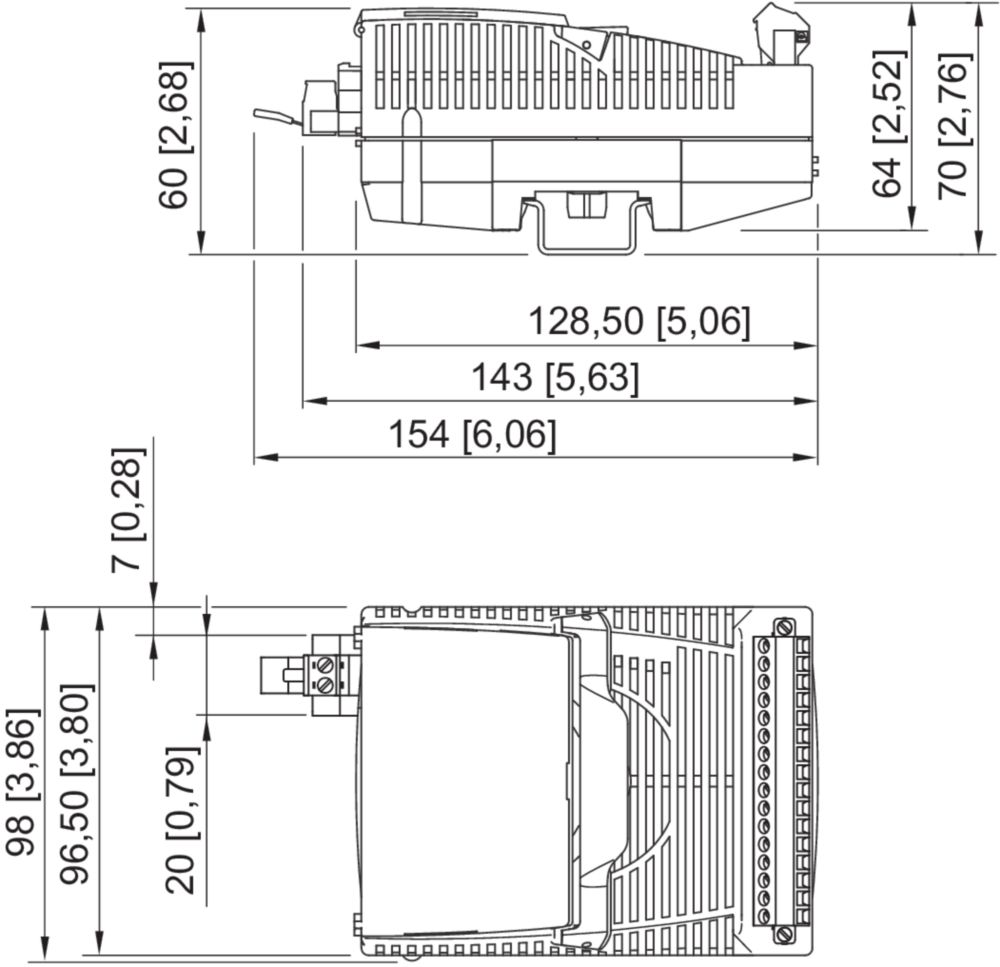

Mechanical Data
Mounting / Installation
Commercial data
