Yokogawa ALF111 version 9419 series bus-Carrier
Art. No.:
221455
Product Type:
9419/04R-YO1-02A5
Product description:
ISbus fieldbus technology Yokogawa bus-Carrier for Zone 2
Zone Filter:
Zone 2 | 3 G | Gc
Application range (zones):
2
Certificates:
ATEX (BVS), Canada (FM), IECEx (BVS), USA (FM)
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9419B |
| Product Type | 9419/04R-YO1-02A5 |
| Product description | ISbus fieldbus technology Yokogawa bus-Carrier for Zone 2 |
| Highlights | Time- and cost-saving installation on DIN rails or mounting platesHigh availability thanks to redundant auxiliary power supply with signalling contact and separate signalling contact for segment errorsSpecial slot for 9415 series DCM for online transmission of physical layer diagnostics |
| Functional Description | 9419 series bus-Carriers allow 9412 series fieldbus power supplies for FF H1 segments to be installed quickly and securely. Variants are available for eight segments with simplex supply and for four or eight segments with redundant supply. Connectors are integrated in this version to connect the AKB336 system cable for Yokogawa ALF111 host assemblies. |
| Description | Yokogawa bus-Carrier for four segments, redundant |
Explosion Protection
Electrical Data
Auxiliary power
Device Specific Data
Ambient Conditions

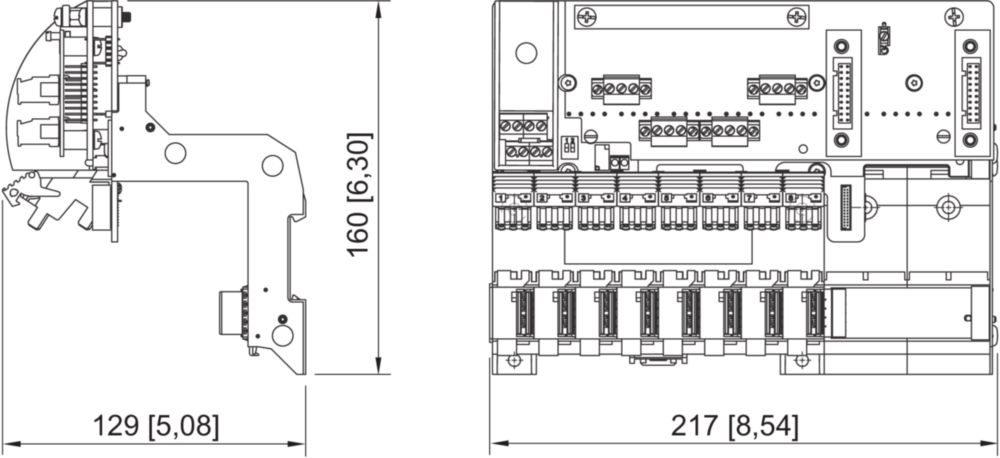

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| bus-Carrier Yokogawa ALF111 Version Series 9419 | Data Sheet |
 |
|
| bus-Carrier Yokogawa ALF111 Version Series 9419 | Data Sheet |
 |
|
| bus-Carrier Yokogawa ALF111 Version Series 9419 | Data Sheet |
 |
|
| bus-Carrier Yokogawa ALF111 Version Series 9419 | Data Sheet |
 |
|
| ISbus fieldbus technology Yokogawa bus-Carrier For Zone 2 - 9419/04R-YO1-02A5 - 221455 - de-DE | Single Data Sheet |
|
|
| ISbus fieldbus technology Yokogawa bus-Carrier for Zone 2 - 9419/04R-YO1-02A5 - 221455 - en-GB | Single Data Sheet |
|
|
| Yokogawa ALF111 version bus-Carrier - 9419 - en-US | Product Overview |
  |
|
| Yokogawa ALF111 version bus-Carrier - 9419 - es-ES | Product Overview |
|
|
| Yokogawa ALF111 version bus-Carrier - 9419 - fr-FR | Product Overview |
|
|
| Yokogawa ALF111 version bus-Carrier - 9419 - de-DE | Product Overview |
|
|
| Yokogawa ALF111 version bus-Carrier - 9419 - en-GB | Product Overview |
|
|
| ISbus fieldbus technology Yokogawa bus-Carrier For Zone 2 - 9419/04R-YO1-02A5 - 221455 - en-US | Single Data Sheet |
|
|
| ISbus fieldbus technology Yokogawa bus-Carrier for Zone 2 - 9419/04R-YO1-02A5 - 221455 - fr-FR | Single Data Sheet |
|
|
| ISbus fieldbus technology Yokogawa bus-Carrier for Zone 2 - 9419/04R-YO1-02A5 - 221455 - es-ES | Single Data Sheet |
|
