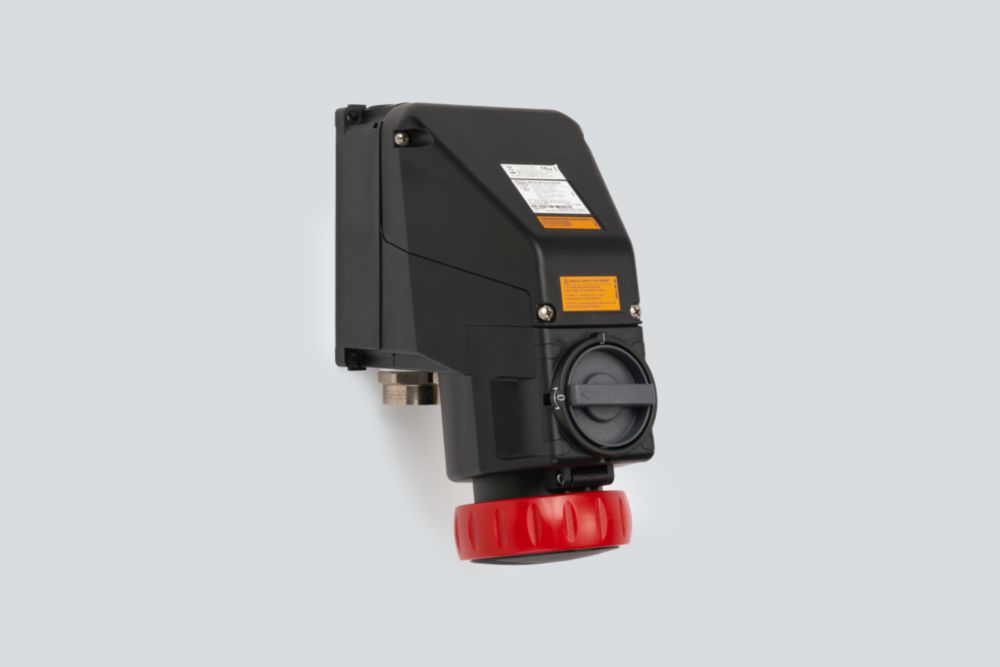

Series 8571/21 30 A wall-mounting sockets
Art. No.:
294382
Product Type:
8571/21-407-S-51-0-00-XXX
Product description:
30 A wall-mounting socket
min. ambient temperature:
-50 °C
max. ambient temperature:
+25 °C
Entry 2 type:
CMP-767D M32
Rated operational current:
30 A
Entry 1 type:
can be ordered as an accessory
Certificates:
ATEX (PTB), Brazil (ULB), Canada (FM), IECEx (PTB), Korea (KTL), Taiwan (ITRI), USA (FM)
Rated operational voltage:
480 V AC
Frequency range:
50 / 60 Hz
Silicone-free:
No
Colour code:
red
Coding (clock hour position):
7
Detailed number of poles:
3-pole, 4 conductors
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8571U |
| Product Type | 8571/21-407-S-51-0-00-XXX |
| Product description | 30 A wall-mounting socket |
| Highlights | Different voltage ranges according to EN 60309Large temperature range of useHigh mechanical impact and shock resistancePerfect protection against penetration of liquids and dusts3D data for download on the websiteAppropriate Series 8571/22 plug |
| Functional Description | R. STAHL Series 8571/21 SolConeX sockets constitute explosion-protected electrical equipment. They are approved for use in hazardous areas that are classified for the division or zone according to NEC 505. The high degree of protection guarantees the highest level of protection against the ingress of dust and/or water in any application position. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily. The load disconnect switch, with a mechanical locking device and a handle that can be locked in the 0 or I position, is an additional safety feature. |
Explosion Protection
Electrical Data
Device Specific Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Wall-mounting sockets - 8571/21 - de-DE | Product Overview |
 |
|
| Wall-mounting sockets - 8571/21 - en-GB | Product Overview |
 |
|
| Wall-mounting sockets - 8571/21 - en-US | Product Overview |
  |
|
| Wall-mounting sockets - 8571/21 - es-ES | Product Overview |
 |
|
| Wall-mounting sockets - 8571/21 - fr-FR | Product Overview |
 |
|
| 30 A wall-mounting socket - 8571/21-407-S-51-0-00-XXX - 294382 - de-DE | Single Data Sheet |
|
|
| 30 A wall-mounting socket - 8571/21-407-S-51-0-00-XXX - 294382 - en-GB | Single Data Sheet |
|
|
| 30 A wall-mounting socket - 8571/21-407-S-51-0-00-XXX - 294382 - en-US | Single Data Sheet |
|
|
| 30 A wall-mounting socket - 8571/21-407-S-51-0-00-XXX - 294382 - es-ES | Single Data Sheet |
|
|
| 30 A wall-mounting socket - 8571/21-407-S-51-0-00-XXX - 294382 - fr-FR | Single Data Sheet |
|
