Clean room panel (CRP), wall-mounted Series 8150/5-V88

Designed for use in controlled environments; specifically those that are hazardous (classified) locations; these flush-mounted socket distributors support easy cleaning and are free of contaminant holding cavities. Ideal for clean rooms in the pharmaceutical, optical, food, fine chemical and life science industries. The product is quad-certified for use in harsh environments, listed to North American (US and CA) standards, as well as certified for IECEx and ATEX.

  • Available with single or duplex sockets, in 20 A or 30 A with a variety of voltages and pin configurations
  • Colour coding and pin configuration makes it physically impossible to mate plugs and sockets of different voltages and current ratings (per IEC 60 309-2)
  • Flush mounting, smooth contours for easy cleaning
  • Enclosure made of 316L brushed stainless steel with concealed gasket
  • Interlocked switch mechanism prevents accidental removal of plug from sockets under load

Filter product lines

hide
Certificates
Min. ambient temperature
Max. ambient temperature
Number of sockets 1
Rated operating voltage socket 1
Rated operating current socket 1
Number of poles on socket 1
Number of sockets 2
Socket 2 type
Rated operating voltage socket 2
Rated operational current socket 2
Number of poles on socket 2

13 Products

Please select products you want to compare Compare

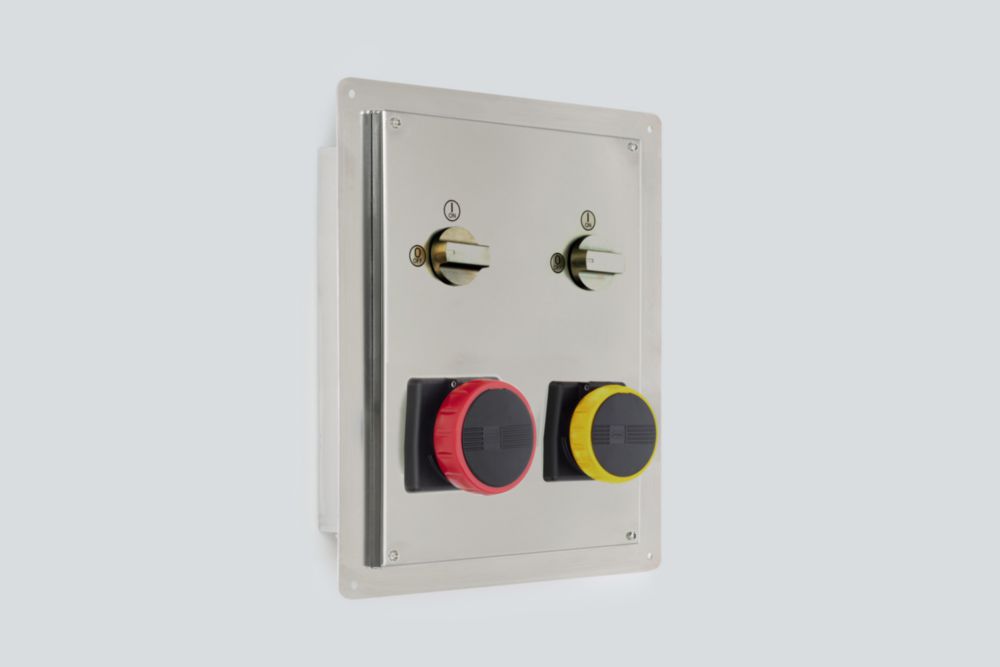

Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 313038 R. STAHL

8150/5-V88-28320-4407-3304 PlugSocket, Wall-mntd socket distributor, h, 1 x 8570/28, 20 A, 100 ... 130 V, Yellow, Number of poles on socket 2: 2, Zone 1, 2, 21, 22

Art. No.: 313038
Product Type: 8150/5-V88-28320-4407-3304 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 2
Rated operating voltage socket 1: 480 ... 500 V
Rated operating current socket 1: 30 A
Number of poles on socket 1: 3
Number of sockets 2: 1
Socket 2 type: 8570/28
Rated operating voltage socket 2: 100 ... 130 V
Rated operational current socket 2: 20 A
Number of poles on socket 2: 2
Please select products you want to compare Compare

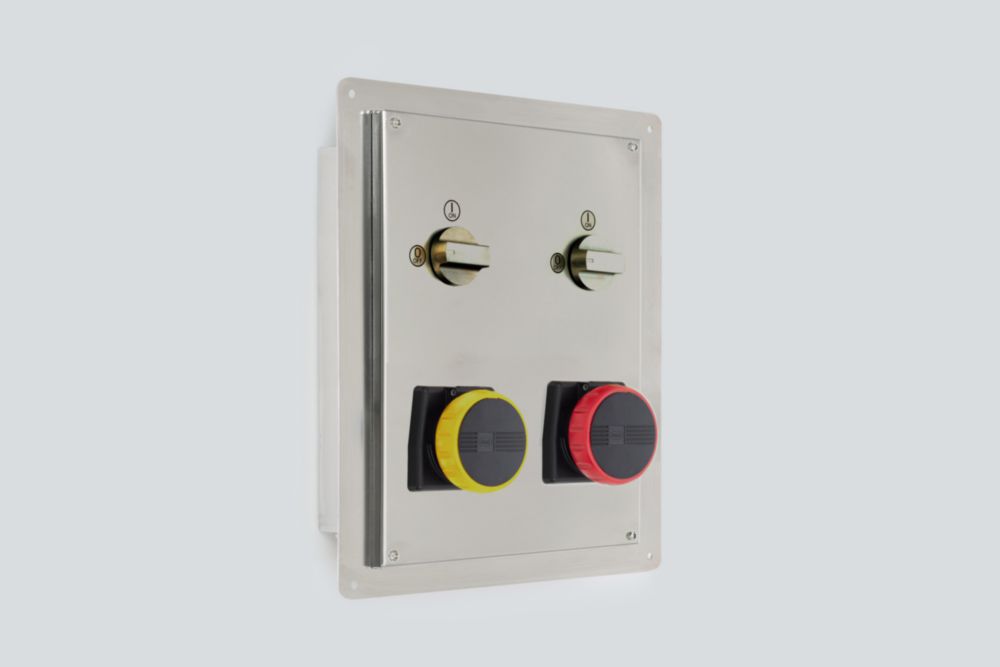

Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 313037 R. STAHL

8150/5-V88-28320-3304-3407 PlugSocket, Wall-mntd socket distributor, h, 1 x 8570/28, 20 A, 480 ... 500 V, Red, Number of poles on socket 2: 3, Zone 1, 2, 21, 22

Art. No.: 313037
Product Type: 8150/5-V88-28320-3304-3407 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 2
Rated operating voltage socket 1: 100 ... 130 V
Rated operating current socket 1: 20 A
Number of poles on socket 1: 2
Number of sockets 2: 1
Socket 2 type: 8570/28
Rated operating voltage socket 2: 480 ... 500 V
Rated operational current socket 2: 20 A
Number of poles on socket 2: 3
Please select products you want to compare Compare
Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 R. STAHL

8150/5-V88-27320-4507 PlugSocket, Wall-mntd socket distributor, h, Stainless steel 1.4404, Zone 1, 2, 21, 22

Art. No.: 256775
Product Type: 8150/5-V88-27320-4507 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 1
Rated operating voltage socket 1: 277/480 ... 288/500 V
Rated operating current socket 1: 30 A
Number of poles on socket 1: 4
Please select products you want to compare Compare
Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 R. STAHL

8150/5-V88-27320-4407 PlugSocket, Wall-mntd socket distributor, h, Stainless steel 1.4404, Zone 1, 2, 21, 22

Art. No.: 256772
Product Type: 8150/5-V88-27320-4407 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 1
Rated operating voltage socket 1: 480 ... 500 V
Rated operating current socket 1: 30 A
Number of poles on socket 1: 3
Please select products you want to compare Compare

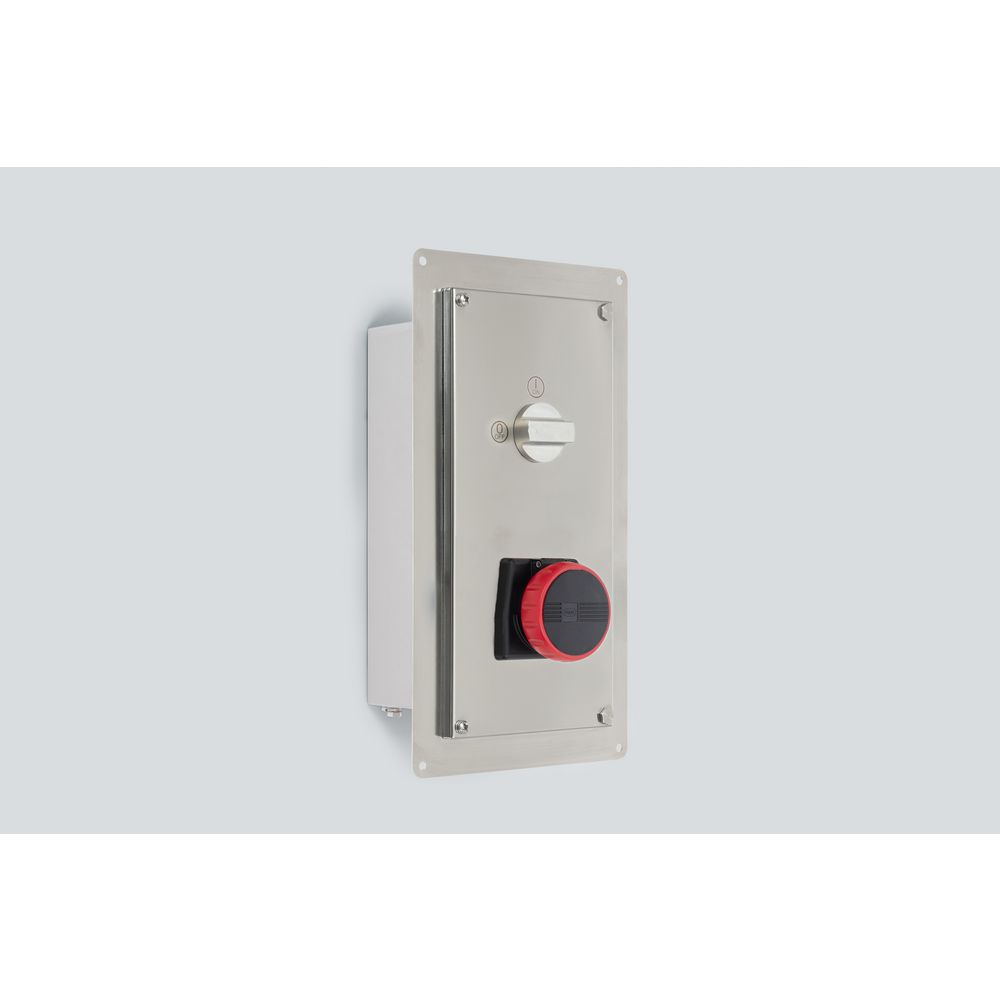

Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 256768 R. STAHL

8150/5-V88-27320-3507 PlugSocket, Wall-mntd socket distributor, h, Stainless steel 1.4404, Zone 1, 2, 21, 22

Art. No.: 256768
Product Type: 8150/5-V88-27320-3507 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 1
Rated operating voltage socket 1: 277/480 V
Rated operating current socket 1: 20 A
Number of poles on socket 1: 4
Please select products you want to compare Compare

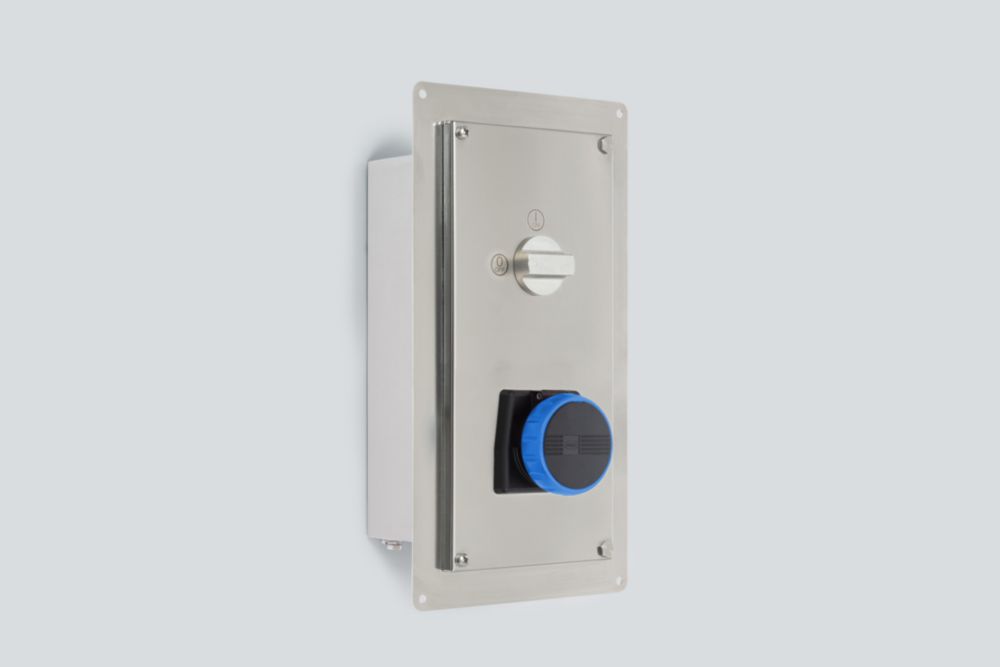

Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 256766 R. STAHL

8150/5-V88-27320-3409 PlugSocket, Wall-mntd socket distributor, h, Stainless steel 1.4404, Zone 1, 2, 21, 22

Art. No.: 256766
Product Type: 8150/5-V88-27320-3409 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 1
Rated operating voltage socket 1: 200 ... 250 V
Rated operating current socket 1: 20 A
Number of poles on socket 1: 3
Please select products you want to compare Compare
Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 256765 R. STAHL

8150/5-V88-27320-3407 PlugSocket, Wall-mntd socket distributor, h, Stainless steel 1.4404, Zone 1, 2, 21, 22

Art. No.: 256765
Product Type: 8150/5-V88-27320-3407 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), USA (FM)
Number of sockets 1: 1
Rated operating voltage socket 1: 480 ... 500 V
Rated operating current socket 1: 20 A
Number of poles on socket 1: 3
Please select products you want to compare Compare

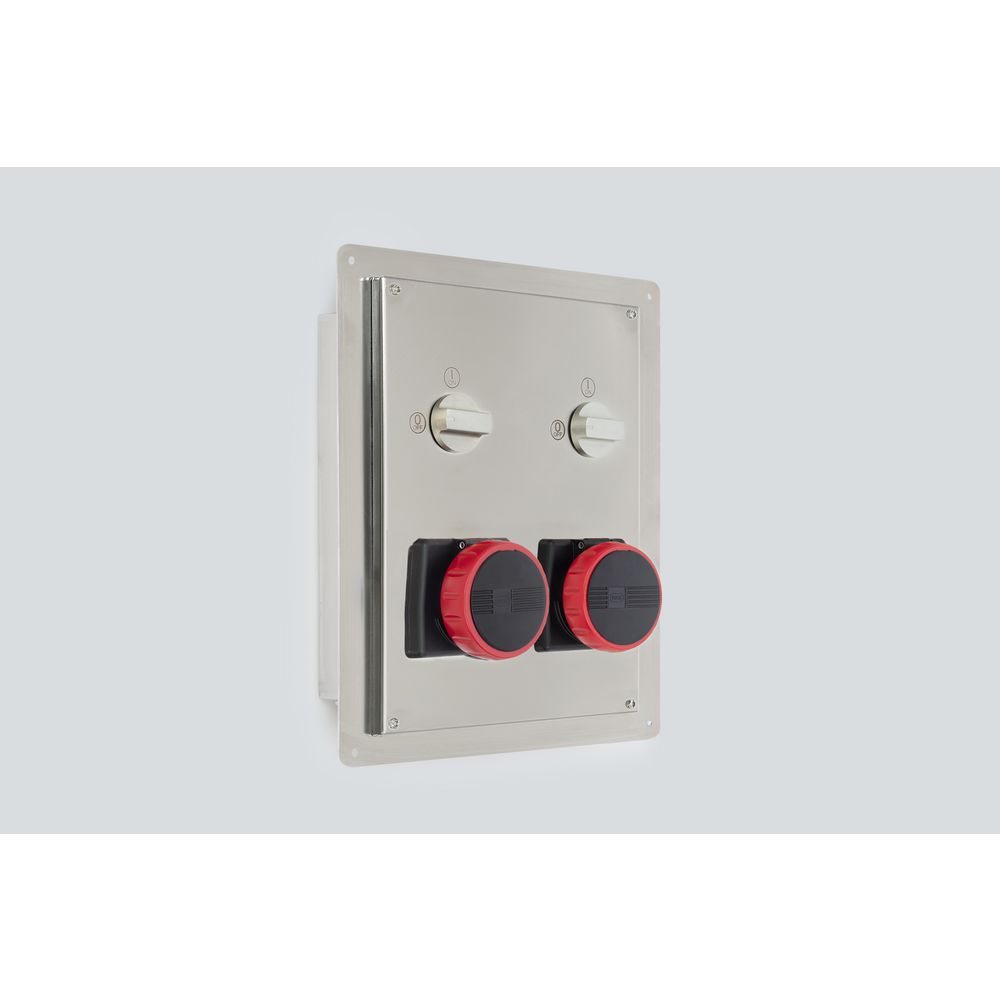

Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 256753 R. STAHL

8150/5-V88-28320-4407-4407 PlugSocket, Wall-mntd socket distributor, h, 1 x 8571/28, 30 A, 480 ... 500 V, Red, Number of poles on socket 2: 3, Zone 1, 2, 21, 22

Art. No.: 256753
Product Type: 8150/5-V88-28320-4407-4407 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 2
Rated operating voltage socket 1: 480 ... 500 V
Rated operating current socket 1: 30 A
Number of poles on socket 1: 3
Number of sockets 2: 1
Socket 2 type: 8571/28
Rated operating voltage socket 2: 480 ... 500 V
Rated operational current socket 2: 30 A
Number of poles on socket 2: 3
Please select products you want to compare Compare
Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 R. STAHL

8150/5-V88-28320-4507-3407 PlugSocket, Wall-mntd socket distributor, h, 1 x 8570/28, 20 A, 480 ... 500 V, Red, Number of poles on socket 2: 3, Zone 1, 2, 21, 22

Art. No.: 256742
Product Type: 8150/5-V88-28320-4507-3407 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 2
Rated operating voltage socket 1: 277/480 ... 288/500 V
Rated operating current socket 1: 30 A
Number of poles on socket 1: 4
Number of sockets 2: 1
Socket 2 type: 8570/28
Rated operating voltage socket 2: 480 ... 500 V
Rated operational current socket 2: 20 A
Number of poles on socket 2: 3
Please select products you want to compare Compare
Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 R. STAHL

8150/5-V88-28320-4407-3407 PlugSocket, Wall-mntd socket distributor, h, 1 x 8570/28, 20 A, 480 ... 500 V, Red, Number of poles on socket 2: 3, Zone 1, 2, 21, 22

Art. No.: 256741
Product Type: 8150/5-V88-28320-4407-3407 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), Canada (FM), USA (FM)
Number of sockets 1: 2
Rated operating voltage socket 1: 480 ... 500 V
Rated operating current socket 1: 30 A
Number of poles on socket 1: 3
Number of sockets 2: 1
Socket 2 type: 8570/28
Rated operating voltage socket 2: 480 ... 500 V
Rated operational current socket 2: 20 A
Number of poles on socket 2: 3
Please select products you want to compare Compare

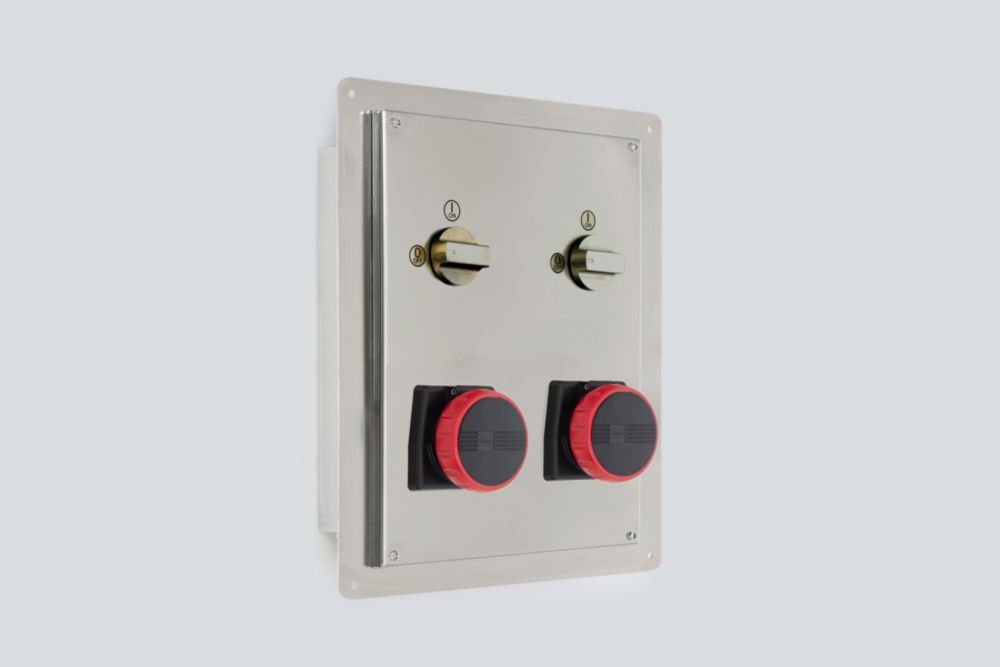

Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 256723 R. STAHL

8150/5-V88-28320-3407-3407 PlugSocket, Wall-mntd socket distributor, h, 1 x 8570/28, 20 A, 480 ... 500 V, Red, Number of poles on socket 2: 3, Zone 1, 2, 21, 22

Art. No.: 256723
Product Type: 8150/5-V88-28320-3407-3407 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), USA (FM)
Number of sockets 1: 2
Rated operating voltage socket 1: 480 ... 500 V
Rated operating current socket 1: 20 A
Number of poles on socket 1: 3
Number of sockets 2: 1
Socket 2 type: 8570/28
Rated operating voltage socket 2: 480 ... 500 V
Rated operational current socket 2: 20 A
Number of poles on socket 2: 3
Please select products you want to compare Compare

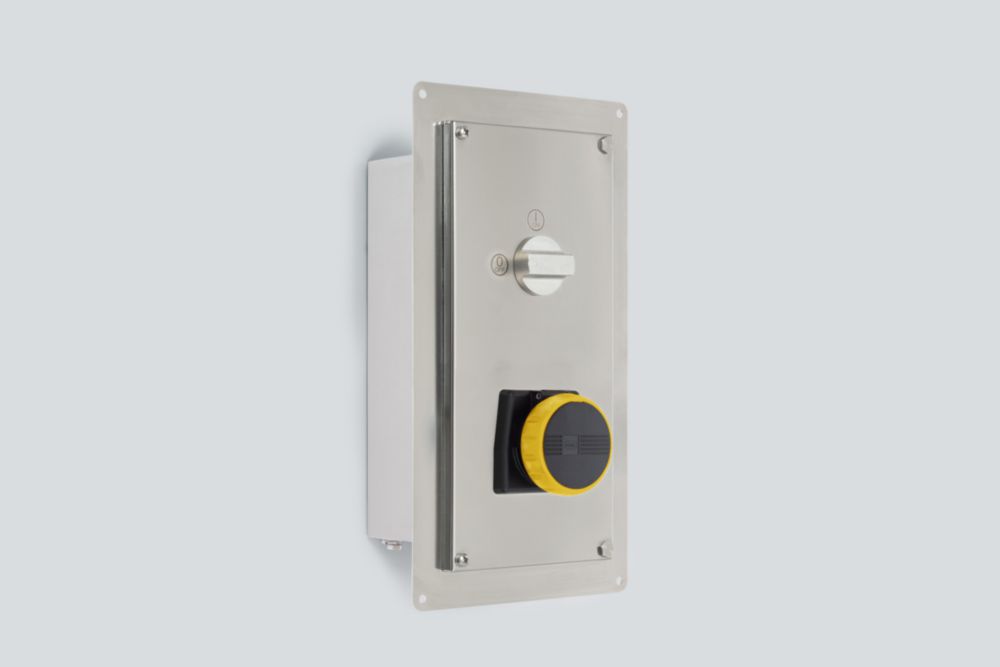

Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 254872 R. STAHL

8150/5-V88-27320-3304 PlugSocket, Wall-mntd socket distributor, h, Stainless steel 1.4404, Zone 1, 2, 21, 22

Art. No.: 254872
Product Type: 8150/5-V88-27320-3304 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), USA (FM)
Number of sockets 1: 1
Rated operating voltage socket 1: 100 ... 130 V
Rated operating current socket 1: 20 A
Number of poles on socket 1: 2
Please select products you want to compare Compare
Reinraumsteckdose (CRP), wandmontiert Reihe 8150/5-V88 | Art. Nr. 254866 R. STAHL

8150/5-V88-28320-3304-3304 PlugSocket, Wall-mntd socket distributor, h, 1 x 8570/28, 20 A, 100 ... 130 V, Yellow, Number of poles on socket 2: 2, Zone 1, 2, 21, 22

Art. No.: 254866
Product Type: 8150/5-V88-28320-3304-3304 PlugSocket
max. ambient temperature: +40 °C
min. ambient temperature: -50 °C
Certificates: ATEX (PTB), IECEx (PTB), USA (FM)
Number of sockets 1: 2
Rated operating voltage socket 1: 100 ... 130 V
Rated operating current socket 1: 20 A
Number of poles on socket 1: 2
Number of sockets 2: 1
Socket 2 type: 8570/28
Rated operating voltage socket 2: 100 ... 130 V
Rated operational current socket 2: 20 A
Number of poles on socket 2: 2
