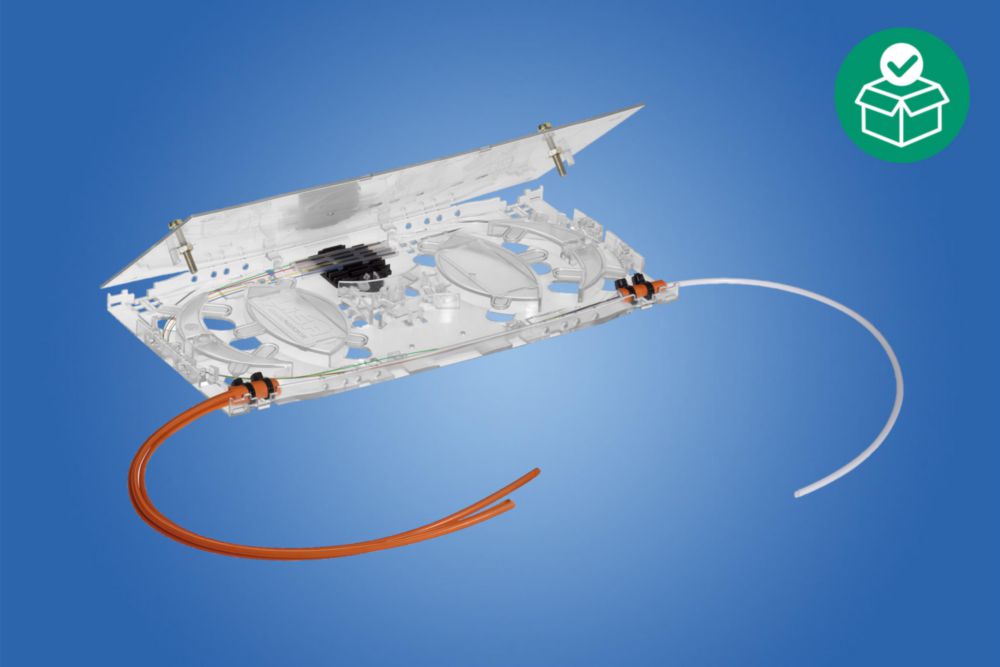

Optical fibre splice cassette Series 8186
Art. No.:
203633
Product Type:
8186/1
Product description:
Splice cassette Fibre optic
Country of origin:
DE
Available in stock
Technical data
General
| MY R. STAHL | 8186A |
| Product Type | 8186/1 |
| Product description | Splice cassette Fibre optic |
| Highlights | For installation in a protective enclosure according to DIN EN 60079-0Standard and customer-specific enclosure versions availableFor correct and time-saving FO installation in Zones 1 and 2With one or two splice protector holders for mounting 6 or 12 fibre optic cablesIntegrated crossing field for crossing fibres with limited bending radiusFO supply possible on all four sidesSimple mounting |
| Functional Description | The Series 8186 optical fibre splice cassette for Zone 1 enables the proper and time-saving connection of fibre optic cables in hazardous areas. The splice cassette provides space for a total of 2 splice protector holders. When using one splice protection holder, up to 6 fibre optic cables can be installed, or up to 12 fibre optic cables with two splice protection holders. The splice cassette is used, for example, in connection chamber enclosures as a transfer point between the flameproof control panels and network or as a connection point between the fibre optic cables. The splice cassette is available for use in gas hazardous areas or dust hazardous areas for installation in a protective enclosure according to DIN EN 60079-0, which is suitable for the provided operating location. Pre-assembled and customer-specific enclosure solutions for various applications are available. |
| Description | Max. 12 fibre optic cables |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Optical fibre splice cassette - 8186 - fr-FR | Product Overview |
 |
|
| Optical fibre splice cassette - 8186 - it-IT | Product Overview |
 |
|
| Optical fibre splice cassette - 8186 - es-ES | Product Overview |
 |
|
| Optical fibre splice cassette - 8186 - de-DE | Product Overview |
 |
|
| Optical fibre splice cassette - 8186 - en-GB | Product Overview |
 |
|
| Splice cassette Fibre optic - 8186/1 - 203633 - de-DE | Single Data Sheet |
|
|
| Splice cassette Fibre optic - 8186/1 - 203633 - en-GB | Single Data Sheet |
|
|
| Splice cassette Fibre optic - 8186/1 - 203633 - fr-FR | Single Data Sheet |
|
|
| Splice cassette Fibre optic - 8186/1 - 203633 - it-IT | Single Data Sheet |
|
|
| Splice cassette Fibre optic - 8186/1 - 203633 - es-ES | Single Data Sheet |
|
