Standard lighting and heating circuit distribution boards Series 8146
Art. No.:
137140
Product Type:
8146/5-ExV-07-12L16C1P-D
Product description:
Light circuit distribut. board With miniature circuit breaker
max. ambient temperature:
+40 °C
min. ambient temperature:
-20 °C
AC rated operational voltage:
230 - 400 V
Rated operational current:
64 A
Certificates:
ATEX (PTB), Canada (FM), China (NEPSI), IECEx (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), USA (FM)
Enclosure material:
Polyester resin
Built-in unit 2:
12 x Miniature circuit breaker 1-pole 16 A/C/6 kA
Country of origin:
DE
On request

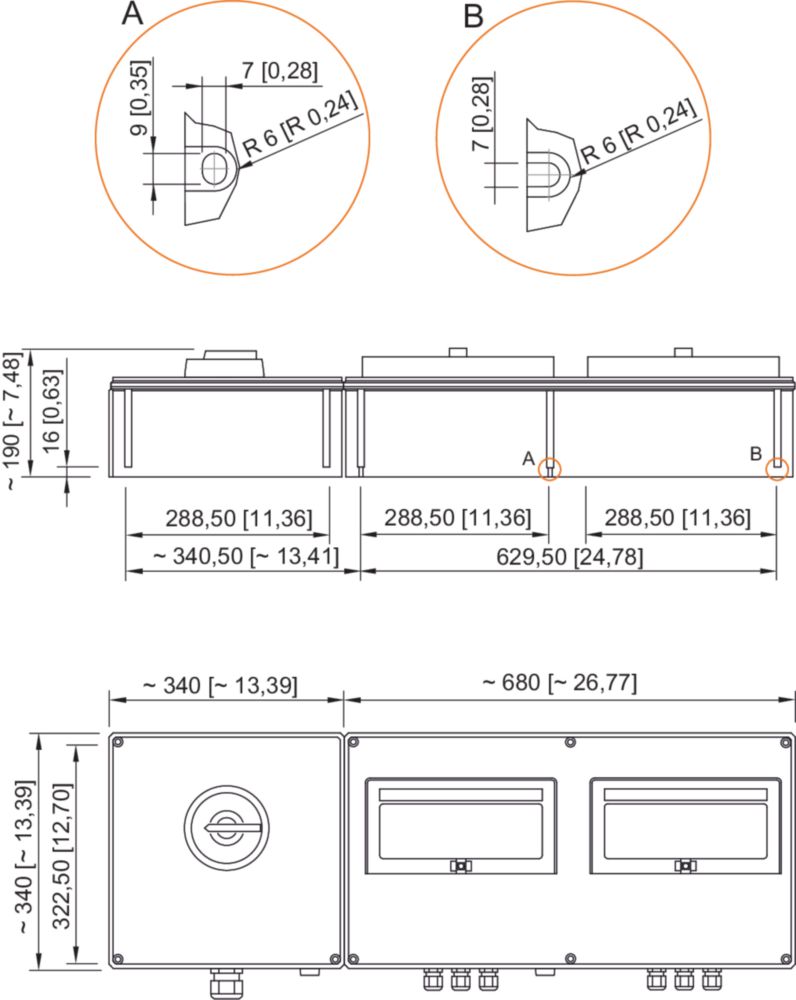

Technical data
General
| MY R. STAHL | 8146D |
| Product Type | 8146/5-ExV-07-12L16C1P-D |
| Product description | Light circuit distribut. board With miniature circuit breaker |
| Highlights | Standard variants with short delivery times, customer-specific options possibleWith miniature circuit breaker, tripping characteristic CWith residual current circuit breaker with overcurrent release, tripping characteristic CNominal currents of 10, 16, 20 and 25 A |
| Functional Description | R. STAHL Series 8146 lighting and heating circuit distribution boards are modular and are therefore available in a large number of standard variants which are ready for rapid delivery. Customer-specific options are also possible. The moulded case circuit breakers are installed beneath a hinged inspection glass and can be actuated from the outside, even when live. The switching position is visible at all times. |
Explosion Protection
Electrical Data
Ambient Conditions
Mechanical Data
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Circuit distribution board light With miniature circuit breaker - 8146/5-ExV-07-12L16C1P-D - 137140 ... | Single Data Sheet |
 |
|
| Light circuit distribut. board With miniature circuit breaker - 8146/5-ExV-07-12L16C1P-D - 137140 - ... | Single Data Sheet |
 |
|
| Standard lighting and heating circuit distribution boards - 8146 - fr-FR | Product Overview |
 |
|
| Standard lighting and heating circuit distribution boards - 8146 - es-ES | Product Overview |
 |
|
| Lighting and heating circuit distribution board - 8146 - de-DE | Product Overview |
|
|
| Lighting and heating circuit distribution board - 8146 - en-GB | Product Overview |
|
|
| Circuit distribution board light With miniature circuit breaker - 8146/5-ExV-07-12L16C1P-D - 137140 ... | Single Data Sheet |
|
|
| Circuit distribution board light With miniature circuit breaker - 8146/5-ExV-07-12L16C1P-D - 137140 ... | Single Data Sheet |
|
