Standard lighting and heating circuit distribution boards Series 8146
Art. No.:
137152
Product Type:
8146/5-ExV-03-12H16B1N-T
Product description:
Heating circuit distrib.boards with residual current circuit breaker With overcurrent release
max. ambient temperature:
+40 °C
min. ambient temperature:
-20 °C
AC rated operational voltage:
230 - 400 V
Rated operational current:
64 A
Certificates:
ATEX (PTB), Canada (FM), China (NEPSI), IECEx (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), USA (FM)
Enclosure material:
Polyester resin
Built-in unit 2:
12 x Residual current circuit breaker 1-pole 16 A+N/30 mA/B/6 kA
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 8146D |
| Product Type | 8146/5-ExV-03-12H16B1N-T |
| Product description | Heating circuit distrib.boards with residual current circuit breaker With overcurrent release |
| Highlights | Standard variants with short delivery times, customer-specific options possibleWith miniature circuit breaker, tripping characteristic CWith residual current circuit breaker with overcurrent release, tripping characteristic CNominal currents of 10, 16, 20 and 25 A |
| Functional Description | R. STAHL Series 8146 lighting and heating circuit distribution boards are modular and are therefore available in a large number of standard variants which are ready for rapid delivery. Customer-specific options are also possible. The moulded case circuit breakers are installed beneath a hinged inspection glass and can be actuated from the outside, even when live. The switching position is visible at all times. |
Explosion Protection
Electrical Data
Ambient Conditions

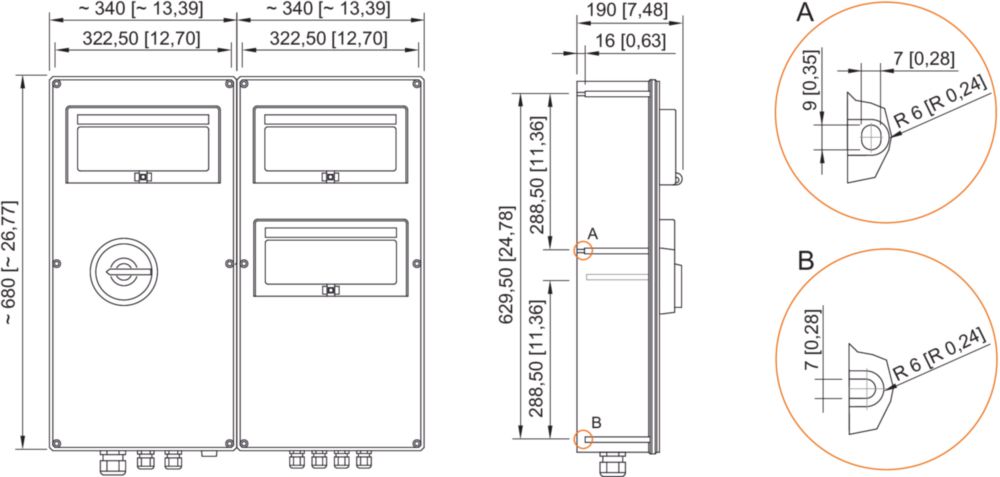

Mechanical Data
Components
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Heating circuit distrib.boards with residual current circuit breaker With overcurrent release - 8146 ... | Single Data Sheet |
 |
|
| Heating circuit distrib.boards with residual current circuit breaker With overcurrent release - 8146 ... | Single Data Sheet |
 |
|
| Heating circuit distrib.boards With residual current circuit breaker With overcurrent release - 8146 ... | Single Data Sheet |
 |
|
| Standard lighting and heating circuit distribution boards - 8146 - fr-FR | Product Overview |
 |
|
| Standard lighting and heating circuit distribution boards - 8146 - es-ES | Product Overview |
|
|
| Lighting and heating circuit distribution board - 8146 - de-DE | Product Overview |
|
|
| Lighting and heating circuit distribution board - 8146 - en-GB | Product Overview |
|
|
| Heating circuit distrib.boards With residual current circuit breaker With overcurrent release - 8146 ... | Single Data Sheet |
|
