Power module for Zone 1 Series 9445
Art. No.:
279965
Product Type:
9445/32-12
Zone Filter:
Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc
Ex interface zone:
1, 2
Certificates:
ATEX (PTB), Brazil (ULB), China (NEPSI), IECEx (PTB)
Ship approval:
BVIS, EU RO MR (DNV), KR, LR
Installation:
Zone 1
Country of origin:
DE
On request
Technical data
General
| MY R. STAHL | 9445B |
| Product Type | 9445/32-12 |
| Highlights | 24 V DC supply module for IS1+ CPU modules and 16 I/O modulesRedundancy of the power module with load sharing possibleIntegrated polarity reversal protectionError messages according to NE 107 (overload, overtemperature, maintenance required)Supports FDT/DTM, OPC UA and web servers for integration in asset management systemsExtended ambient temperature range from -40 to +75 °C |
| Functional Description |
The 9445/32 power module is used to supply the 9442/32 CPU and up to 16 I/O modules with intrinsically safe power. The auxiliary power is connected using a pluggable terminal with unconnected cable end (accessory). Two 9445/32 power modules can be connected to a 9496/35 socket to provide a redundant power supply to the 9442/32 CPU and the I/O modules. The 9445/32 power module monitors itself and reports notifications to the control systems and asset management systems when there is an overload, the ambient temperatures are too high or the end of the service life has been reached. |
Explosion Protection
Safety Data
Electrical Data
Auxiliary power
Galvanic isolation
Device Specific Data
Ambient Conditions

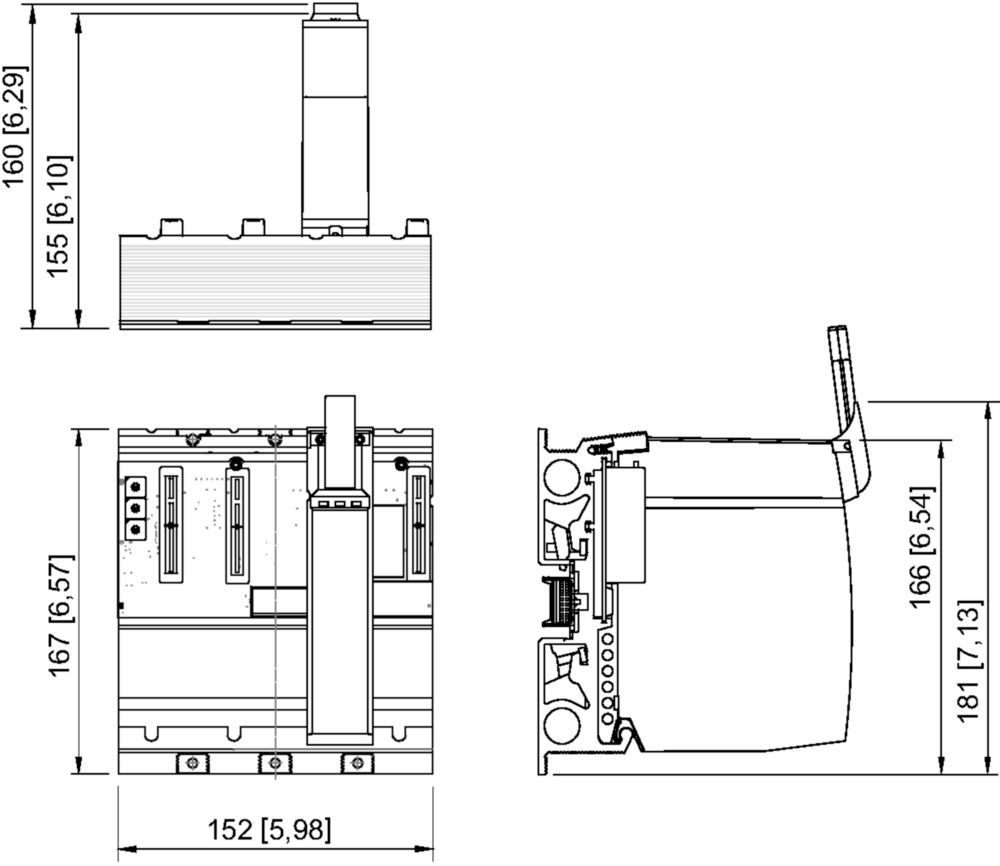

Mechanical Data
Mounting / Installation
Commercial data
Downloads
| Description | Document Type | Language | |
|---|---|---|---|
| Power module for Zone 1 - 9445/32 - de-DE | Product Overview |
 |
|
| Power module for Zone 1 - 9445/32 - en-GB | Product Overview |
 |
|
| Power module for Zone 1 - 9445/32 - fr-FR | Product Overview |
 |
|
| Power module for Zone 1 - 9445/32 - es-ES | Product Overview |
 |
|
| Power module for Zone 1 - 9445/32 - zh-CN | Product Overview |
 |
|
| Remote I/O IS1+ - 9445/32-12 - 279965 - de-DE | Single Data Sheet |
|
|
| Remote I/O IS1+ - 9445/32-12 - 279965 - en-GB | Single Data Sheet |
|
|
| Remote I/O IS1+ - 9445/32-12 - 279965 - fr-FR | Single Data Sheet |
|
|
| Remote I/O IS1+ - 9445/32-12 - 279965 - es-ES | Single Data Sheet |
|
